• Rear axle, 4.56 ratio
• Transfer case, 2.64:1 2-speed, button-actuated full-time 4WD (Not available with (ZM6) Off-Road Suspension Package.)
• Four wheel drive
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Alternator, 125 amps
• Recovery hooks, 2 front and 1 rear
• Skid Plate Package includes skid plates for front and steering/suspension, transfer case and fuel tank
• GVWR, 6001 lbs. (2722 kg)
• Suspension, front, independent, heavy-duty with torsion bar
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs
• Steering, power, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc with a unique calibration for 4Lo

• Wheels, 4 - 16" x 7.5" (40.6 cm x 19.1 cm) aluminum
• Tires, P265/75R16 all-terrrain, blackwall
• Tire, full-size spare with painted steel wheel, under-body-mounted
• Luggage rack side rails, roof-mounted
• Bumpers, front and rear steel (not jackable)
• Grille, chrome 7-slot
• Headlamps, dual composite halogen with automatic exterior lamp control
• Fog lamps, front, halogen
• Mirrors, outside power-adjustable, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver- and front passenger-side glass)
• Wipers, front intermittent, variable, wiper/washer
• License plate provision, front includes bolts
• Body, endgate
• Rail caps, pickup box bed
• Bedliner

• Audio system, AM/FM stereo with 6-disc in-dash CD changer, seek-and-scan, digital clock, auto-tone control, speed-compensated volume and TheftLock. Includes (UQA) Monsoon performance-enhanced premium 6-speaker system (May be substituted with (UM8) AM/FM stereo with CD and DVD-integrated navigation.)
• Audio system feature, Monsoon performance-enhanced premium 6-speaker system
• XM Radio. XM Radio includes 3 trial months of service. XM turns your world on with commercial-free music channels from Rock to Jazz, Country to Classical, Latin Pop to Hip Hop, and virtually everything in between, all in amazing digital sound. Turn on your favorite Sports with every Major League Baseball game from Opening Day until the World Series, NHL Hockey, the PGA TOUR and college football and basketball. Plus XM brings you the biggest names in news and talk, outrageous comedy, award-winning family programming -- wherever you go from coast to coast. Exclusive live concerts, Oprah and Friends, Radio Disney, and so much more. Find what turns you on (Available only in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. Visit gm.xmradio.com for more details.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) (Requires (UE1) OnStar.)

• Seats, front bucket includes driver power lumbar controls, adjustable outboard head restraints and map pockets on seatbacks (Includes (AG1) 8-way power driver seat adjuster, (AG2) 8-way power front passenger seat adjuster and (KA1) heated driver and front passenger seats.)
• Uplevel Decor includes (**3) leather with complementary piping seat and interior trim, first row and second row leather-appointed seats with (AG1) 8-way power driver seat adjuster, (AG2) 8-way power front passenger seat adjuster, (KA1) heated driver and front passenger seats and (NP5) leather-wrapped steering wheel
• Seats, Leather-appointed
• Seat adjuster, driver 8-way power with power lumbar control
• Seat adjuster, front passenger 8-way power with power lumber control
• Seats, heated driver and front passenger
• Seat, rear split-folding
• Console, floor includes removable tray
• Floor covering, carpet
• Floor mats, carpeted front, oversized
• Floor mats, carpeted rear seat, oversized
• Steering wheel, leather-wrapped
• Windows, power with driver Express-Down
• Retained accessory power
• Door locks, power
• Remote Keyless Entry with 2 transmitters and remote panic button
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASSlock II
• Air conditioning, single-zone manual
• Defogger, rear-window
• Glovebox, passenger-side
• Owners publication (Retail orders only)
• Cupholders, 2 front and 4 rear
• Power outlets, 2 auxiliary, 12-volt
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Visors, driver and front passenger includes vanity mirror on passenger side
• Assist handles, 5 total 1 A-pillar mounted for front passenger, 2 B-pillar and 2 overhead-mounted for outboard rear seats
• Lighting, interior with front and interior dome, reading, instrument panel courtesy, door switches and illuminated entry

• StabiliTrak, Stability Control System with Traction Control and hill start assist feature
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Notification, Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, a link to all Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com or call 1-888-466-7827 for system limitations and details. For a list of vehicles with Automatic Crash Notification visit onstar.com.)
• Daytime Running Lamps
• Tire Pressure Monitor (Does not monitor spare.)
• Horn, single-note

ENGINE, 3.7L DOHC 5-CYLINDER MFI

• (239 hp [178.2 kW] @ 5800 rpm
• 241 lb-ft of torque [325.3 N-m] @ 4600 rpm) (STD)

• Luxury Package 1SC
• 4.56 Rear Axle Ratio
• Five 16" x 7.5" Steel Painted Smoke Gray Wheels
• 16" x 7.5" Chrome Wheels
• Cloth Seat Trim
• Front Reclining Bucket Seats
• 8-Way Power Driver Seat Adjuster
• AM/FM Stereo w/CD Player
• AM/FM Stereo w/6-Disc In-Dash CD Changer
• Extra Large Power Sunroof
• Universal Home Remote
• Appearance Package
• Heavy-Duty Handling/Trailering Suspension Package
• Trailering Equipment
• 8-Way Power Front Passenger Seat Adjuster
• Carpeted Front Oversized Floor Mats
• Carpeted Rear Seat Oversized Floor Mats
• Driver & Front Passenger Visors
• Heated Driver & Front Passenger Seats
• Leather-Wrapped Steering Wheel
• Chrome Appearance Package
• XM Radio
• Monsoon Audio System Feature
• Base Decor
• Uplevel Decor
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Safe & Sound
• AM/FM radio: XM
• Compass
• Auto-dimming Rear-View mirror
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Security system
• Roof rack: rails only
• Remote keyless entry
• Rear window defroster
• Rear step bumper
• Rear anti-roll bar
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• CD player
• ABS brakes
• Tachometer
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Bedliner
• Air Conditioning
• 6 Speakers

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3050
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2467
• Curb Weight - Rear (lbs): 2467
• Gross Vehicle Weight Rating Cap (lbs): 6001
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4400
• Dead Weight Hitch - Max Tongue Wt. (lbs): 440
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Semi-floating
• Spring Capacity - Front (lbs): 3050
• Spring Capacity - Rear (lbs): 3200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3050
• Axle Capacity - Rear (lbs): 3250
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 0.98
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.4 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 12.3 x 0.5
• Tires
• Front Tire Order Code: QAX
• Rear Tire Order Code: QAX
• Spare Tire Order Code: - TBD -
• Front Tire Size: P265/75R16
• Rear Tire Size: P265/75R16
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 2194
• Rear Tire Capacity (lbs): 2194
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7.5
• Rear Wheel Size (in): 16 x 7.5
• Spare Wheel Size (in): 16 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr rack and pinion
• Steering Ratio (:1), On Center: 16.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 27
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 134.2
• Length, Overall w/rear bumper (in): 212.7
• Width, Max w/o mirrors (in): 75.0
• Height, Overall (in): 72.1
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground Clearance, Front (in): 9.5
• Ground Clearance, Rear (in): 9.5
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 44.2
• Cargo Box (Area) Height (in): 19.4
• Cargo Volume to Seat 1 (ft³): 33.5
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.9
• Front Shoulder Room (in): 54.4
• Front Hip Room (in): 53.9
• Second Head Room (in): 39.5
• Second Leg Room (in): 34.2
• Second Shoulder Room (in): 54.0
• Second Hip Room (in): 52.6
• Summary

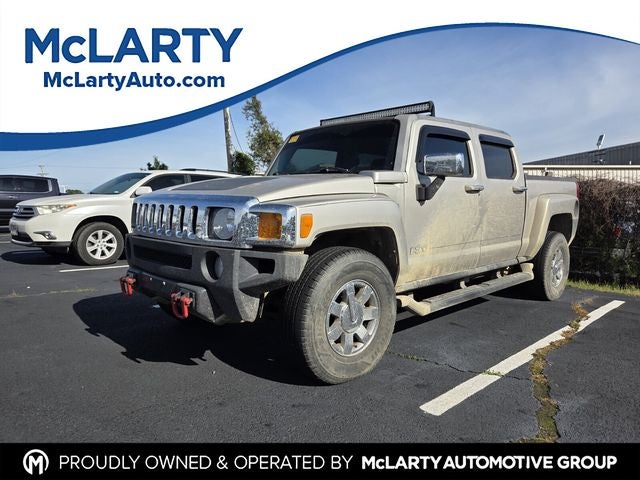

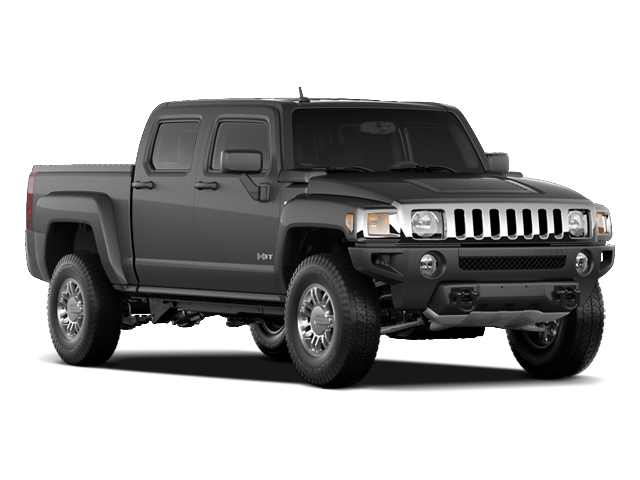

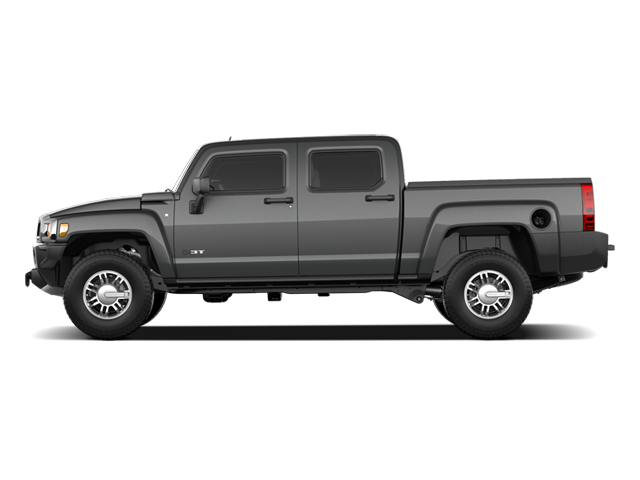

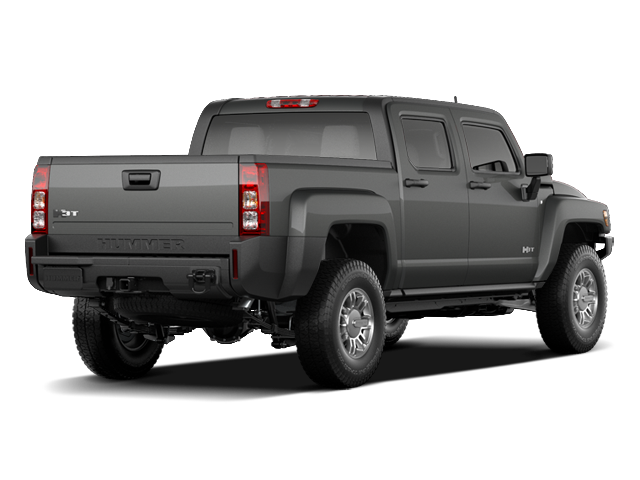

• Vehicle Name: HUMMER H3
• Body Style: 4 Door SUV
• Body Code: 134.2" WB
• Emissions
• EPA Greenhouse Gas Score: 3
